червоний модуль розпізнавання голосу (офлайн) з аліекспрес (DD501)

 придбав щоб погратися модуль офлайн розпіднавання голосових команд. працює непогано :) по замовчуванню англійські команди керування світлом. 2 канали. команди вкл,викл можна налаштувати на льоту. Закидую сюди як памятку.Нижче інформація з сайту aliexpress

Description

Report Item

1. Specification

Based on the neural network processor NPU, the module realizes off-line local speech recognition through off-line neural network algorithm.Using this module for off-line speech recognition does not depend on the network, has small delay and high performance, can achieve a high recognition rate of more than 95%, the recognition distance can be up to 5-10 meters, and the shortest response time is 0.2 seconds.



Parameter item Detailed description

Identification type Local speech recognition（Offline , without network）

Recognition distance Effective distance 5 ~ 10m in a quiet environment

Recognition accuracy Recognition accuracy ＞ 95% in 5m distance

Response speed < 0.2 seconds

Awakening word It supports the operation of no wake-up word, and can customize the word for customers

Operation instruction It supports up to 100 operation commands and can customize command words

Third party interface Support UART protocol to output speech recognition results and realize secondary development;

Sound input 1-channel microphone input

Communication interface UART (3.3V TTL level logic)  Disable by default

Output control PWM / IO (3.3V level logic)

Working parameters DC 3.6V-5.0V, current < 50mA

Work environment -40~85℃,0~85%RH

Pad Port Pin hole, pad spacing 2.0mm

Product size 18x13x3mm

Language type: Support Record Any Language



2. Record other language to control

If you want to use voice for control, first of all, you need to record your voice（it can be in any language）

that is to say, using voice to control PWM or IO output requires recording voice before use.

The operating steps are as follows:

（1）Power the product with a DC power supply of 3.6-5.0v and connect a microphone.

Connect a button between pin GND and pin P3（As Record Control）;

Single Click: Record command for "ON";

Double click: Record command for "OFF";

Press and hold for 6 seconds to delete the recorded command;

（2）The indicator light can be connected to the P5 pin.

Click Action: The light flashes once;

Double click operation: the light flashes twice;

Recording successful: light flashing 3 times;

Delete operation successful: the light flashes 4 times;

Control output pins: P5;

Connect the LED indicator light at pins P1 or P2 or P5, and the light will indicate when using recording commands.

Attention:  2~4 command words are the best， command word duration less than 3s.

Please keep the environment quiet during operation and read the input voice aloud

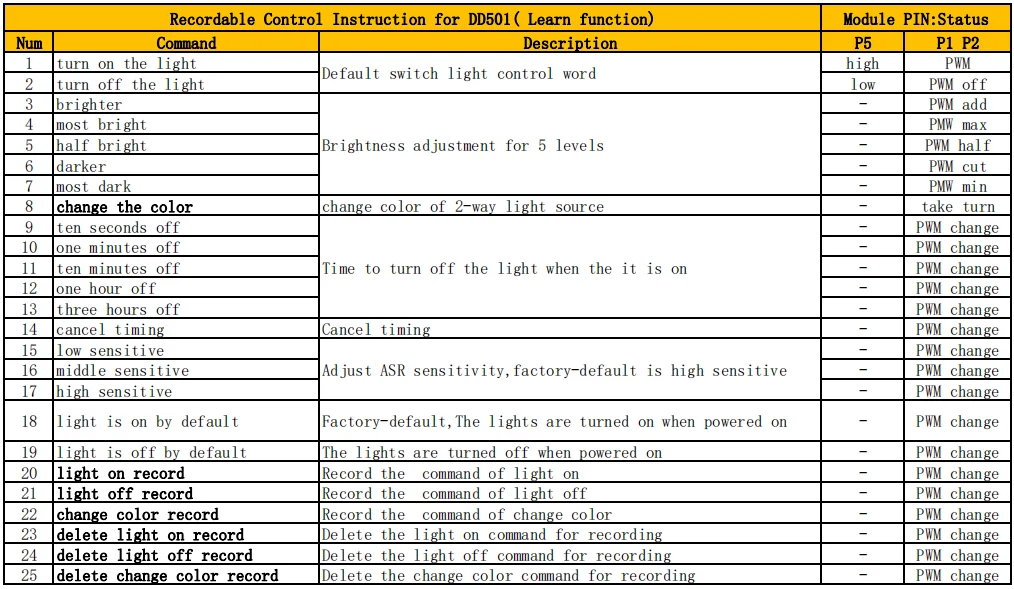

3. Use Default Command( in English)



Of course, you can also use the operation instructions reserved by the module to control,

The module comes with default instructions for light control when it leaves the factory, using English as the default control language.

Attention:  command words 15-25, needs to be operated within 3minutes after power on;

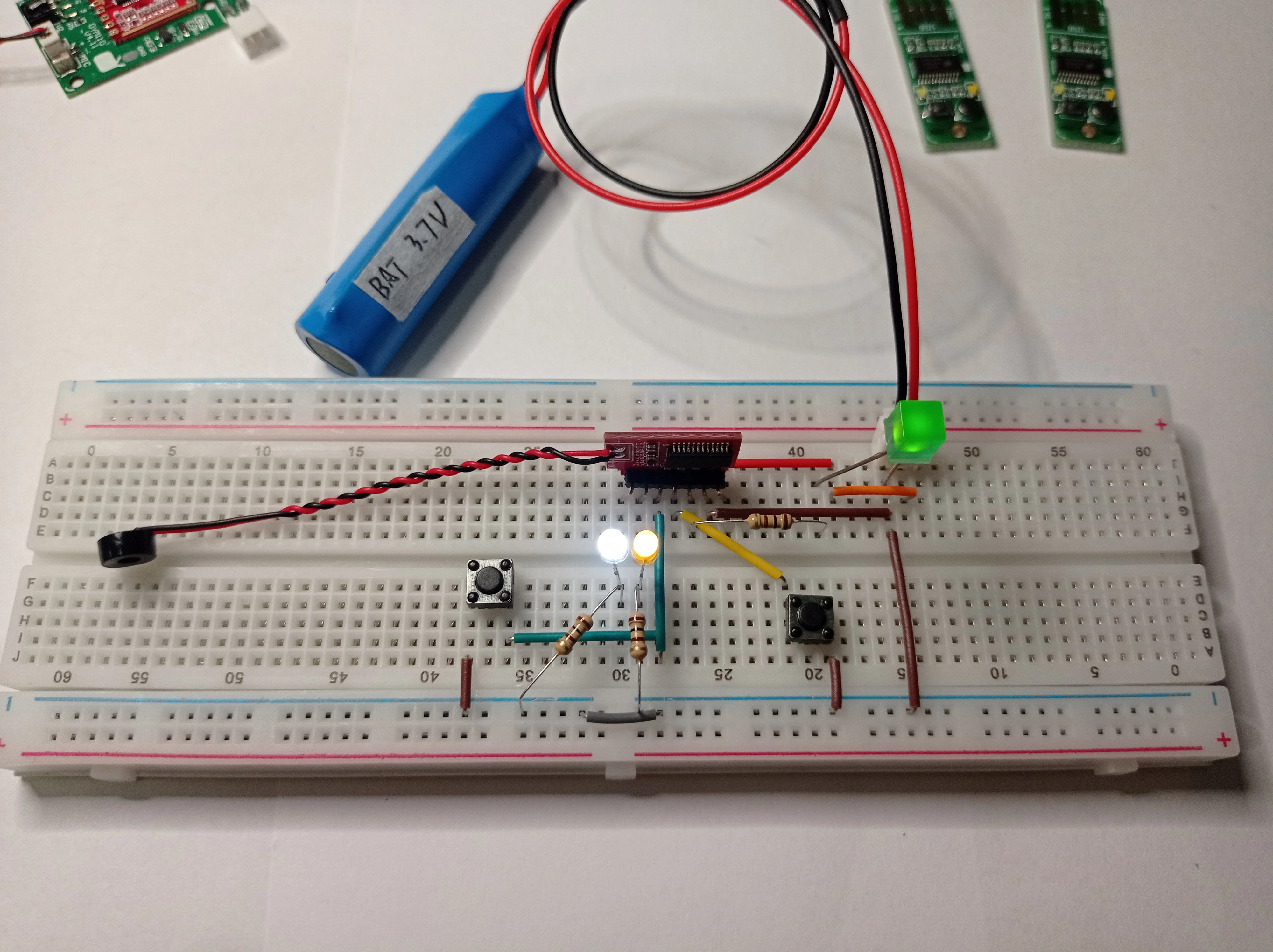

4. Wiring Instructions

Wiring instructions:

VCC and GND are connected to 3.6-5V power supply,

MIC+and MIC - are connected to the positive and negative electrodes of the microphone, respectively,

Control output using pins P1, P2, or P5;

Pins P1 and P2 output 2-way PWM control dual color light;

Pin P5 outputs a high or low level signal to control one channel of lighting .

Pin P4: Button input pin, Used for switch control (effective at low level).

Pin P3: Button input pin, used for recording training controle （effective at low level).



Common problems and solutions for product use:

1. After recording, say what was just recorded, but the product did not respond?

Answer:

When recording, pay attention to maintaining a quiet environment and make the recorded sound louder.

Additionally, please note that the recording content is 2-4 words, and the number of syllables pronounced should not exceed 8 (for example, an English word “hello” is 2 syllables ). The recording content should not be too long (should be controlled within 3 seconds), otherwise it will affect the recognition effect.

2. After recording, it was found that the lights sometimes automatically is on or off?

Answer:

The recorded content may be too short, or there may be loud environmental noise during recording. The content needs to be re recorded again.

3. After recording the command, and then record a new command again. Are both recording commands valid?

Answer:

The product only retains the latest recorded content, and the new recorded content will overwrite the old content.

4.If you encounter any other problems, please leave me a message in the message window and I will reply as soon as possible. Please feel free to inquire.

(Due to different time zones, replies may be delayed. Please understand.)



Attention：If you need to purchase large quantities , we can customize command words and UART results for you, please contact us!

Welcome to visit our website    https://readingtech.cn
